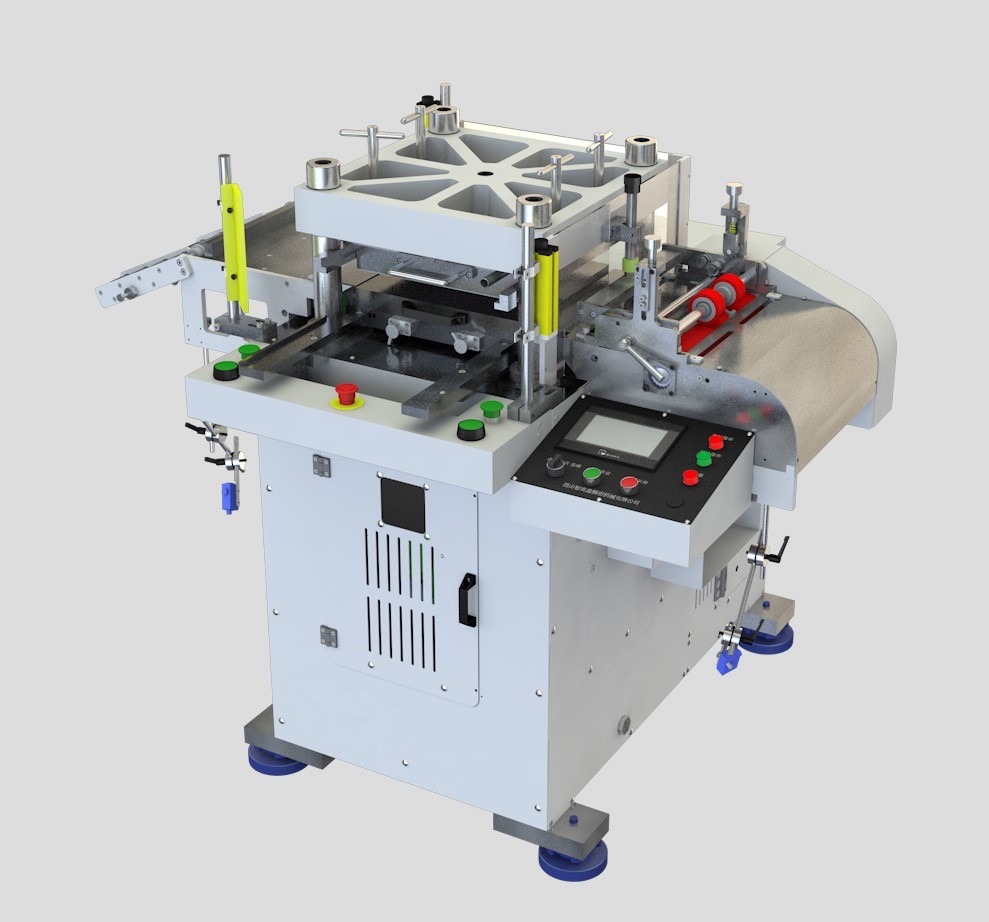

WXR-460-High speed die cutting machine

ormwork area: 460mmx460mm
Mold type: corrosion engraving steel mold (QDC)
Mold closing height: closed 100 mm, open 126 mm
Automatic pressure regulating stroke: ± 6mm (set depth of value on touch screen)
Working mode: inching / single / continuous
Contact:+86-17372606095

Product details

1. Standard configuration:

  1. Die cutting upper plate thickness is one piece. Die cutting lower plate is one piece.

  2.   A set of material pulling servo motor.

  3. A set of main machine servo motor.

  4. A set of two side safety light curtain device.

  5.  Two sets of machine photoelectric.

  6. A set of electric pressure regulating system.

  7.  A set of rod lifting and material pulling device.

  8. A set of material feeding and air suction device

2. Technical parameters:

Template area: 460mmx460mm, mold type:

The closing height of QDC die is as follows:

Close 100 mm open 126 mm automatic pressure regulating stroke: ± 6 mm (set depth of value on touch screen) working mode: inching / single / continuous safety protection:

Die cutting speed: 1500-12000 times / h (length ≤ 100mm) lubrication mode: 1

Specification of automatic oil supply air source: air pressure 0.6MPa, exhaust volume 0.03 m3 / min, power supply voltage:

Three phase 380V / 4.5kw overall dimension:

1800mm × 1450mm × 1410mm (length × width × height) mechanical weight: 2500kg

3. Some parts brands:

1. Touch screen: velon

2. PLC: Mitsubishi

3. Safety light curtain: Yipu Optoelectronics

4. Drawing servo: Yaskawa, Japan

5. Bearing: NSK IKO, Koyo

6. Sensor: ornix Panasonic
